LTC212

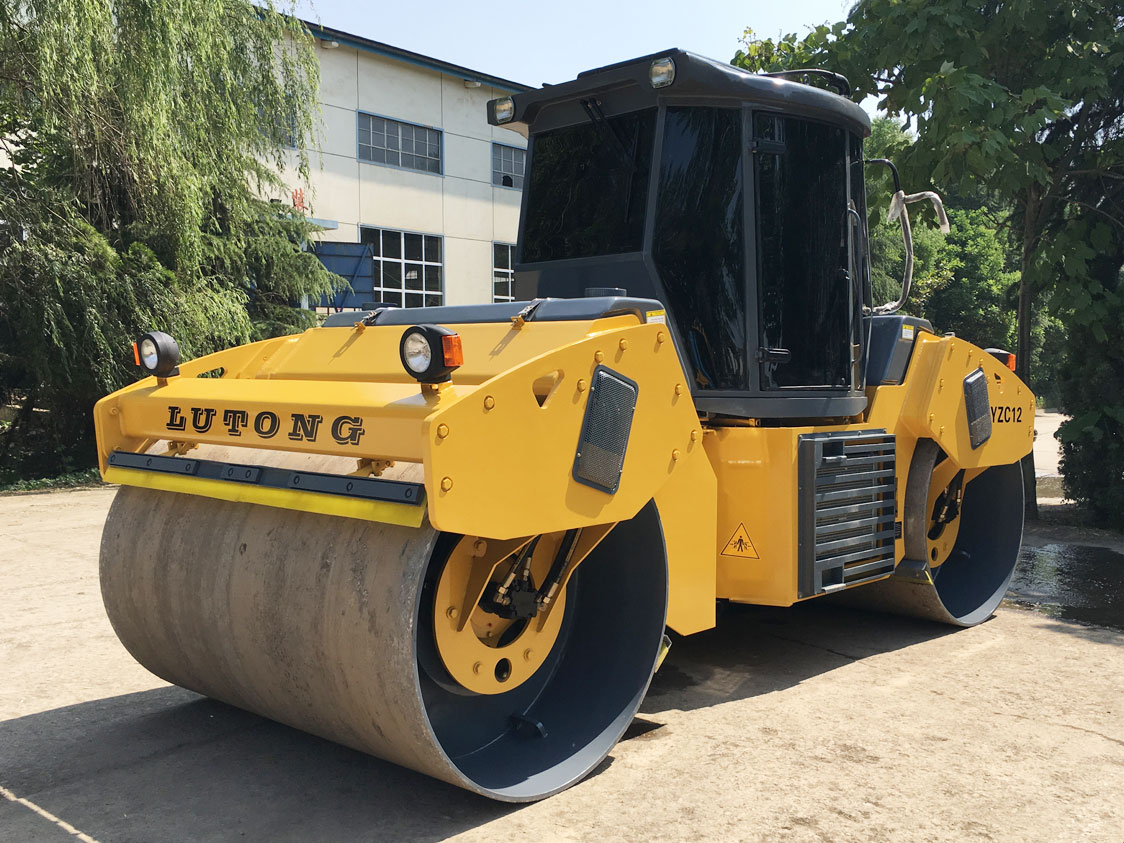

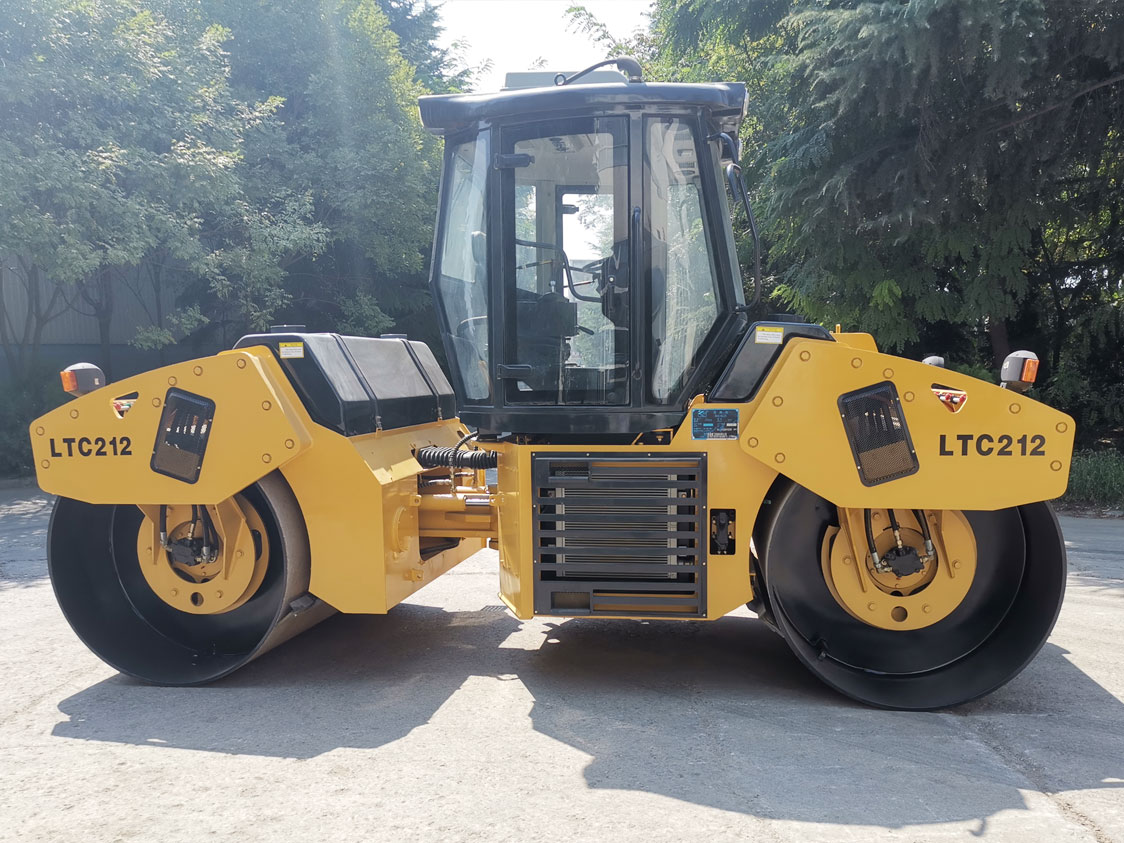

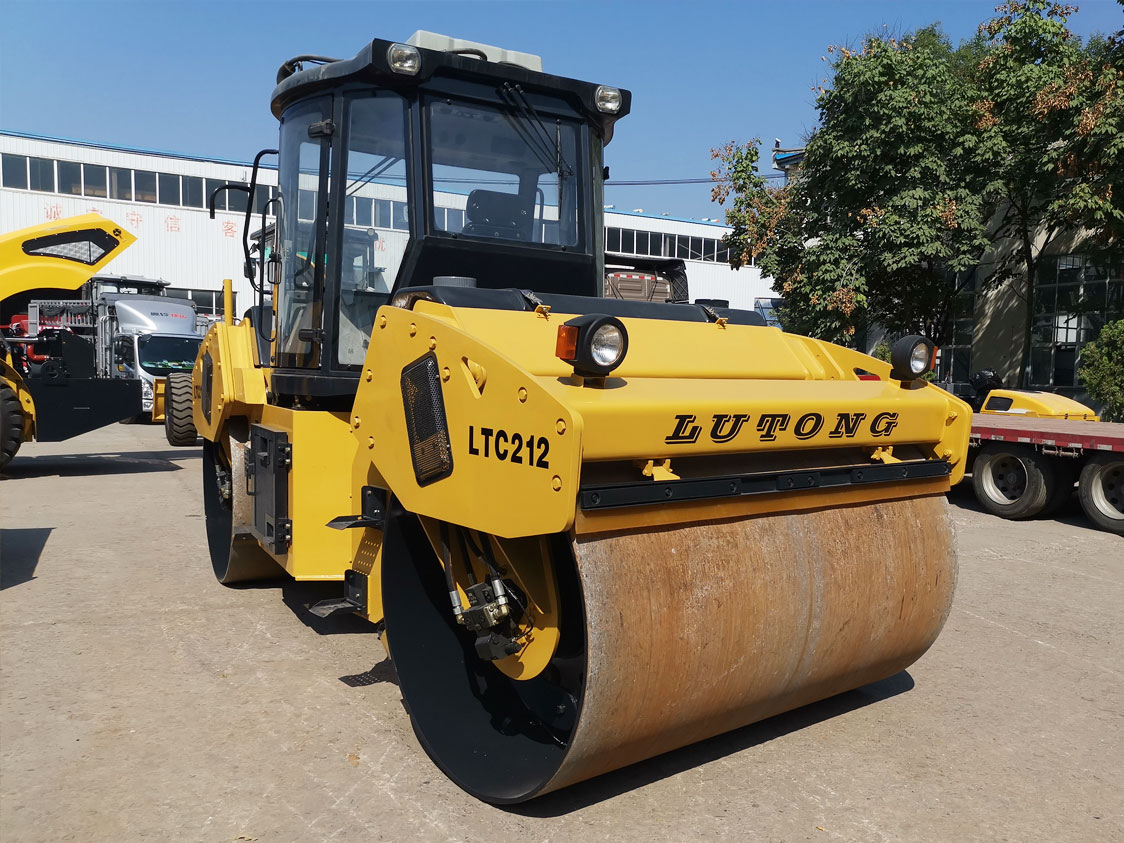

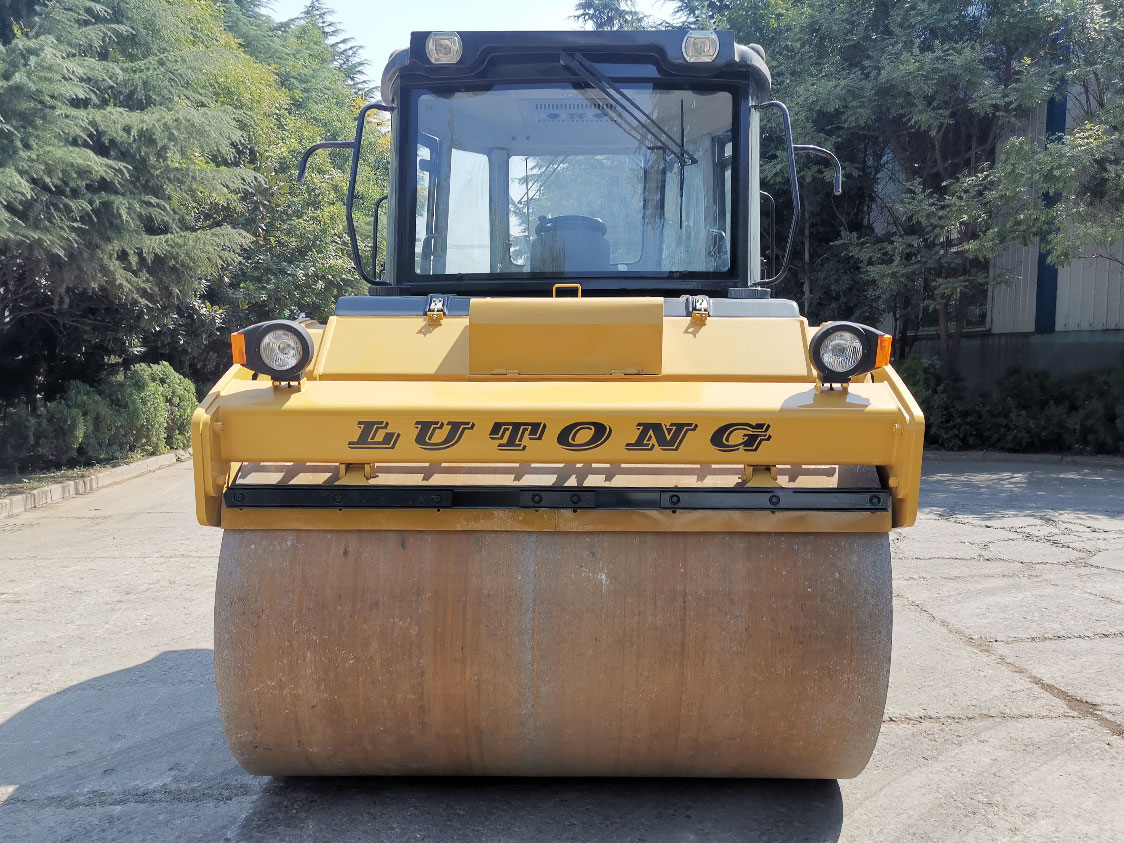

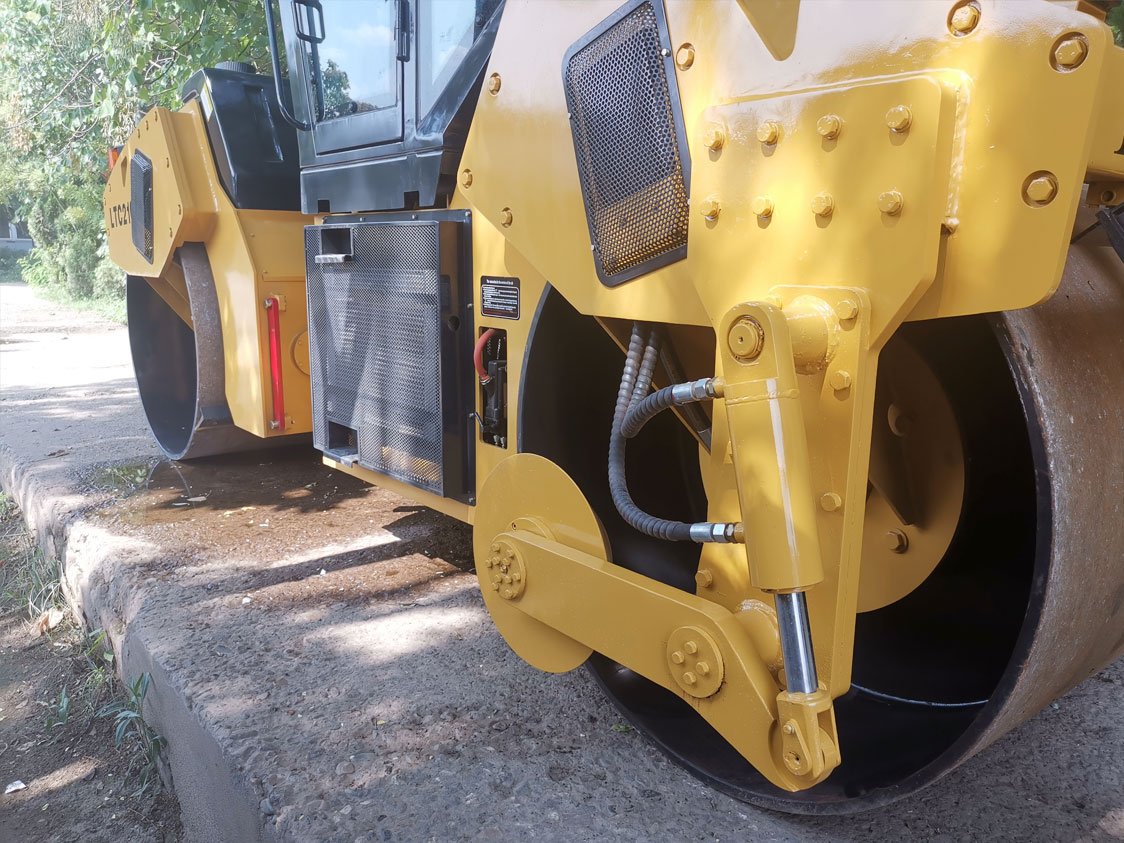

LTC212 is a fully hydraulic vibratory roller produced using advanced foreign technology and imported key components. This machine is a heavy-duty double steel wheel tandem vibratory roller, suitable for compacting road asphalt concrete, sand and gravel mixture and dry hard cement concrete. It is a general construction equipment for rolling and leveling highways, municipal roads, parking lots and industrial sites.
main feature:
* Fully hydraulic two-wheel drive, two-wheel vibration;
*Dual-frequency double-amplitude vibration device;
* Fully hydraulic central articulated steering, optionally equipped with a unique crab crawling mechanism;

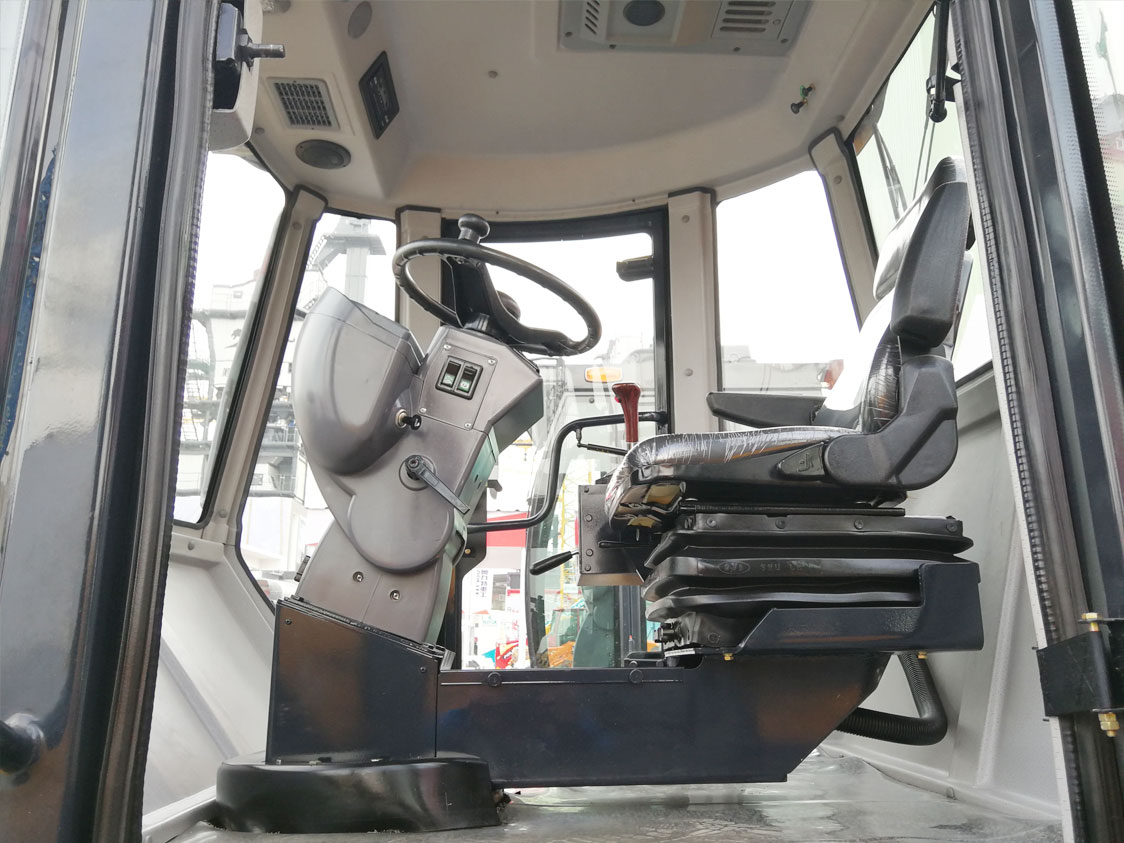

*The air-conditioned driver's cabin is spacious and comfortable, and the rotating work seat makes operation more flexible and convenient;
*The driver's cab has an integral rollover function to facilitate equipment maintenance;
*Fork-type frame has good edge-holding properties; *The hydraulic system adopts products from the American ASUER company. *Optional intelligent compaction management system
The main technical parameters:
MODLE | LTC212 | |
Operating mass | kg | 12000 |
Front axle load | kg | 6000 |
Rear axle load | kg | 6000 |
Static linear load | N/cm | 286 |
Form of frame | Fork-type(叉脚式) | |
Water tank capacity | L | 2×600 |
Fuel tank capacity | L | 174 |
Hydraulic tank capacity | L | 75 |
Vibration frequency | mm | |
High ampl. | 0.8 | |
Low ampl. | 0.34 | |
Vibration frequency | Hz | |
High ampl. | 40 | |
Low ampl. | 46 | |
Centrifugal force | kN | |
High ampl. | 160×2 | |
Low ampl. | 90×2 | |
Travel speed | km/h | 0-12 |
Turning radius | mm | 7000 |
Grade ability | % | 30 |
Steering angle | ° | ±30 |
Drum diameter | mm | 1350 |
Drum width | mm | 2100 |
Transverse swing angle of the vibrating wheel | ° | ±8 |
Type of water spray | mm | Pressure |
Wheelbase | mm | 3717 |
Overall length | mm | 5060 |
Overall width | mm | 2250 |
Overall height | mm | 3000 |
Ground clearance | mm | 324 |
Diesel model | QSB3.9 | |
Diesel power | kw | 94 |
Diesel speed | r/min | 2300 |
