388

Description:

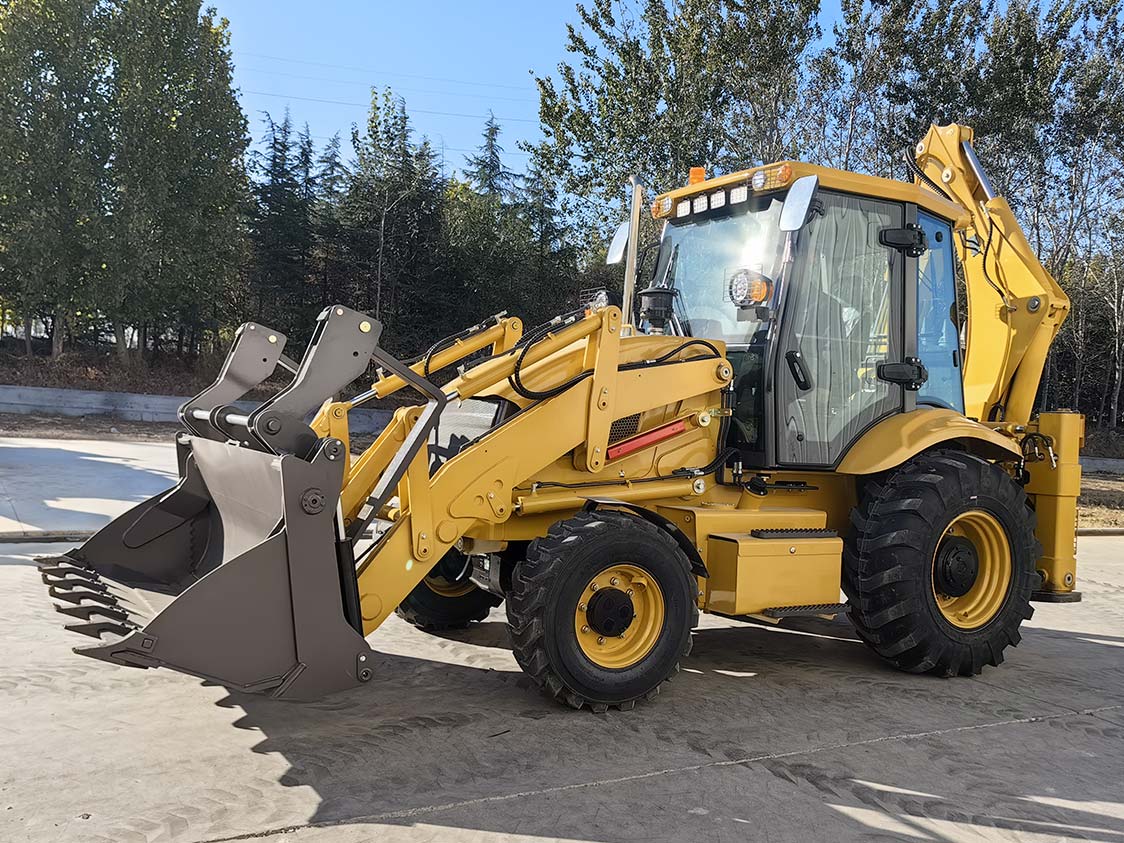

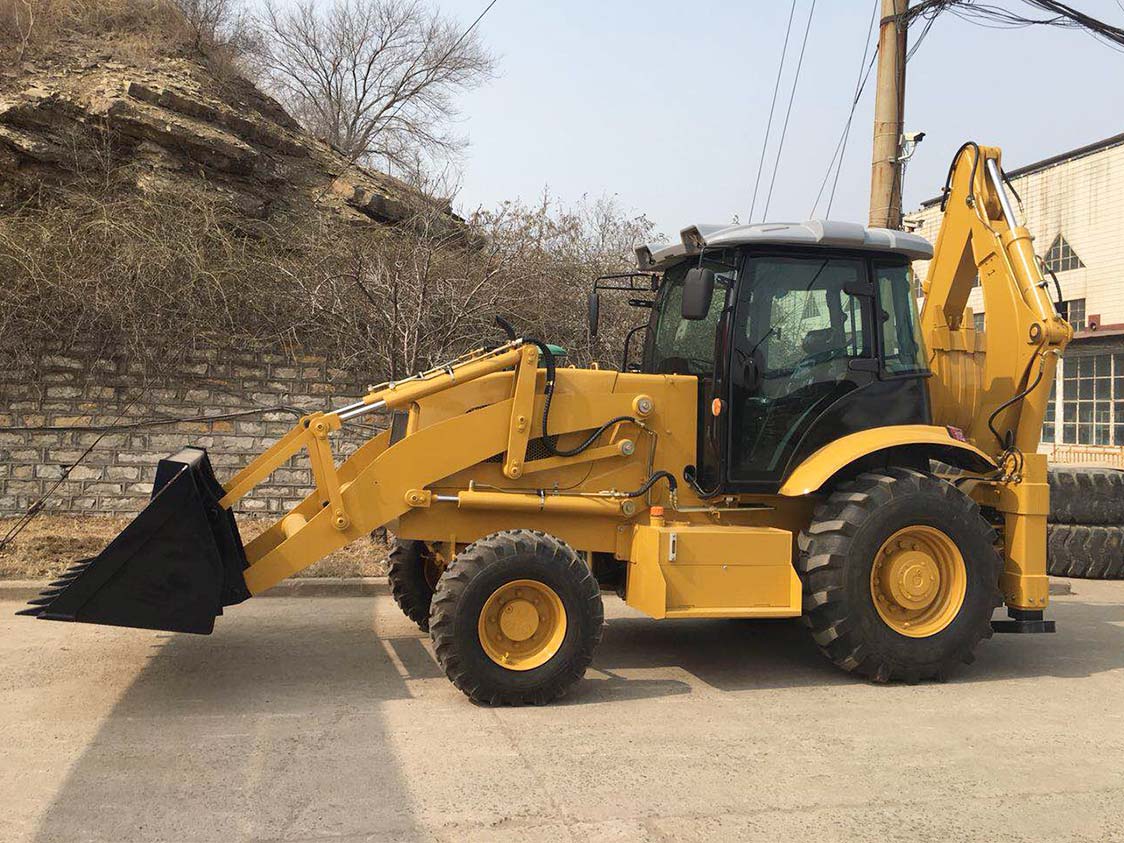

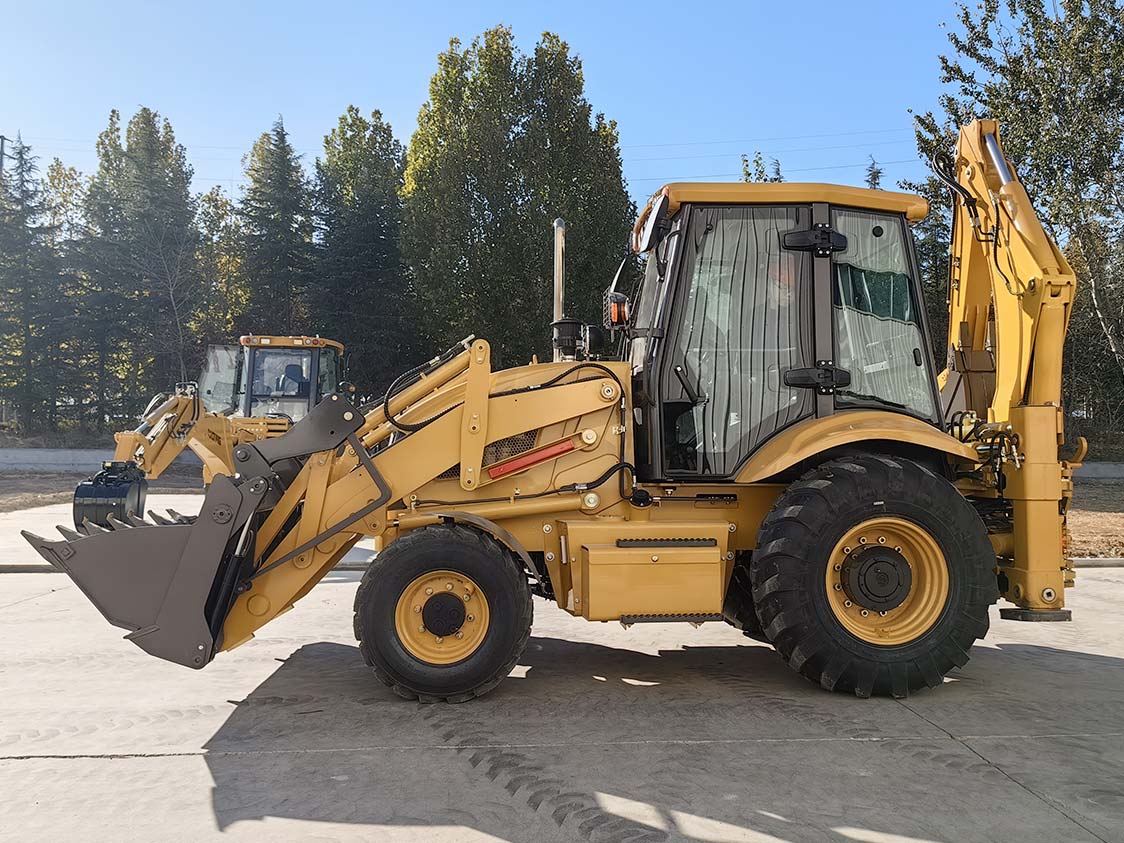

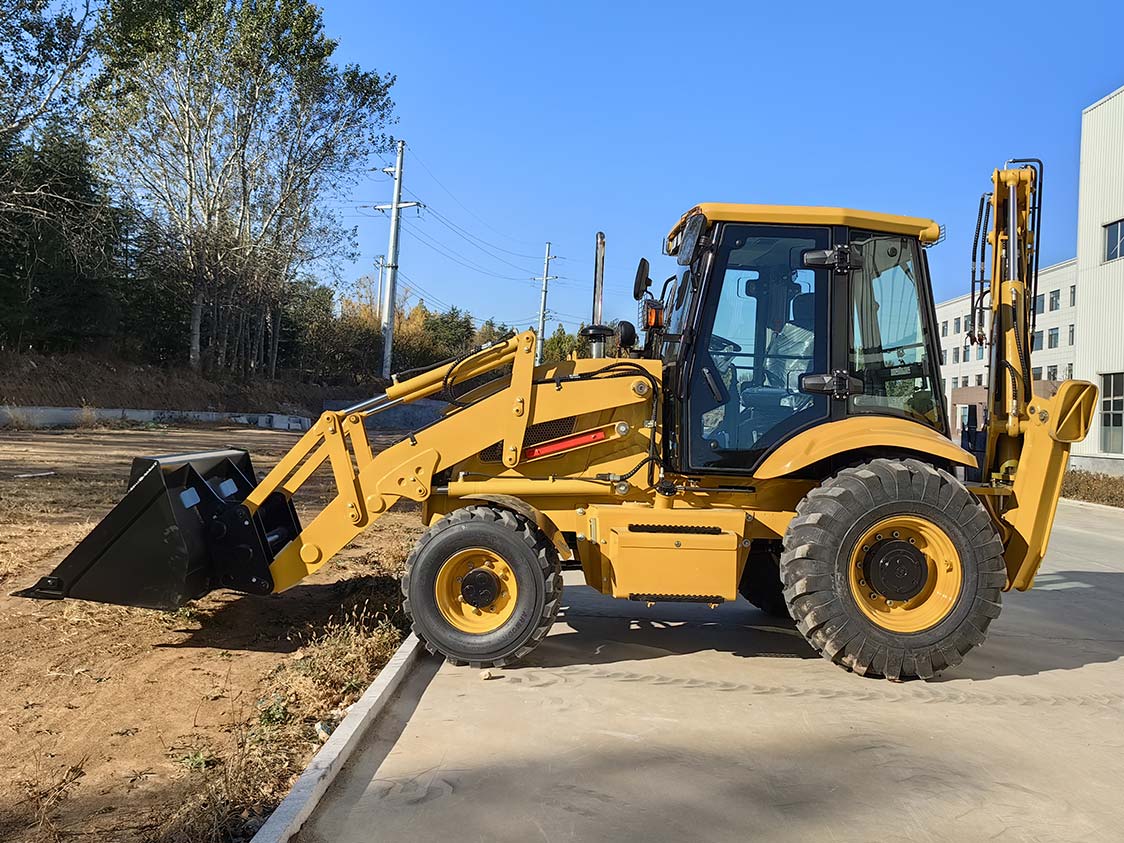

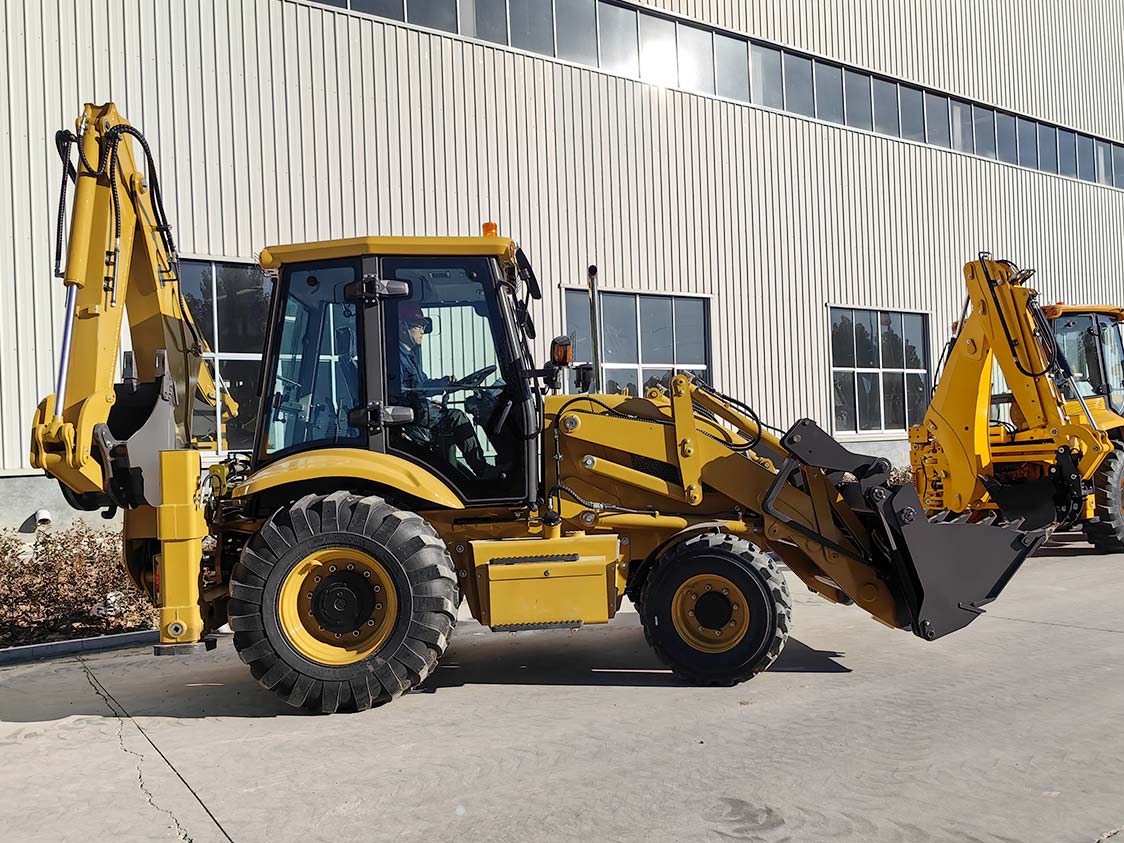

In recent years,388 backhoe loader has been used in many countries and regions.In farms,mines or even some public projects,we can see the backhoe loader working.Our 388 backhoe loader can doing loading,transporting,pushing and digging tasks.But there are some people who hope that our product can dig deeper.In order to meet their needs,the excavator end of our 388 backhoe loader can be equipped with telescopic boom which the maximum digging depth is more that 5 meters.The telescopic boom is produced by our factory to provide excellent performance and reliability and its control system is hydraulic.The operator can easily extend the telescopic boom inside the cabin.


Here is the specification:

Overall dimensionOperating Weight8200KG
Overall dimension(L×W×H)6050×2465×3100mm
Wheel base2280mm
Wheel tread1785mm
Ground Clearance300mm

Performance

Loader bucket capacity

1.0m³

Loader breakout force

47KN

Loader lifting capacity

2500KG

Loader dumping height

2760mm

Loader dumping reach

900mm

Loader digging depth

52mm

Backhoe bucket capacity

0.3m³

Backhoe bucket digging force

50KN

Backhoe swing angle

180°

Backhoe dumping height

3795mm

Backhoe max digging depth

4085mm

Max. traction force

60KN

Engine

Model

Yuchai YC4A105Z-T20

Type

Turbocharging four-stroke

Cylinder-inner diameter*stroke

4-108×132

Rated power

75KW/100HP

Rated speed

2200r/min

Min. Fuel consumption

230g/kw.h

Max.torque

400N.m

Displacement

4.8L

Steering system
TypeHydraulic Steering
Diverter modelBZZ5-250
Pump delivery63ml/r
Steering angle±36°
Min. turning radius6581mm
Driving axle
Model
WZZ75D
ManufacturerChina axle
Max. load of front axle22.5 ton
Max. load of rear axle18.5 ton
Transmission
GearboxMechanically Operated Hydraulic Synchrinized Shift
ModelZL15
Gears2 forward and 2 reverse gears
Hydraulic torque converterYJ290
Inlet pressure0.4-0.65Mpa
Outlet pressure1.5-1.8Mpa
Cooling modeoil-cooling presssure circulation
Pump delivery40ml/r

Wheel

Front wheel size

14-17.5

Rear wheel size

19.5L-24

Front tire pressure

0.4Mpa

Rear tire pressure

0.35Mpa

Travel speed

24Km/h

Brake system
Service brakeAir over oil caliper, external, self-regulation, self-balance
Parking brakeManual brake
System pressure
Loading hydraulic system19Mpa
Digging hydraulic system19Mpa

Steering hydraulic system

14Mpa


123


Frequently asked questions

  • What should I do if I have no import experience?

    We can provide home delivery service, you only need to wait at home to receive the goods.

  • Can you support installment payment?

    Sorry, we are temporarily unable to provide installment services.

  • How should I solve the problem if the machine fails during use?

    1) In principle, all machines do not provide warranty

    2) We can provide you with free technical support and provide high-quality and low-cost parts for you to choose from.

  • How do I purchase?

    1) Agree on the brand and model of the machine.

    2) Agree on the price and payment terms of the machine (CIF\FOB\EXW)

    3) Sign the contract and pay the payment

    4) Ship to the delivery location agreed by the buyer

    5) Buyer inspects and receives goods

  • Are your machines guaranteed?

    The company provides three types of machines

    1) High-quality remanufactured machines are remanufactured in machine brand agent repair shops. The entire process is inspected and repaired by the agent's maintenance engineers. You can visit and inspect it at any time. The entire remanufacturing process is transparent and open.

    2) The machine in its original state is tested on site by a test engineer who has worked for more than 10 years. The original state information of the machine is recorded on site and fed back to the customer, who then decides whether to purchase and repair it.

    3) Brand new machines can be provided. In China's new machine sales network, there are more than 5 suppliers of each brand. Find suppliers with suitable prices and guaranteed supply.

  • How can I find the right machine for me?

    1) Choose according to the working environment of the machine
    2) Choose based on common local brands and models to facilitate repair, maintenance and sales.
    3) Choose the condition of the machine according to your own budget
    4) Choose a reliable supplier with guaranteed funds and authentic machines.
  • Can your equipment be visited?

    Henan Gallant Machinery Company welcomes you to visit the site for testing. It is located in Zhengzhou City, Henan Province, China.
