388H

Description:

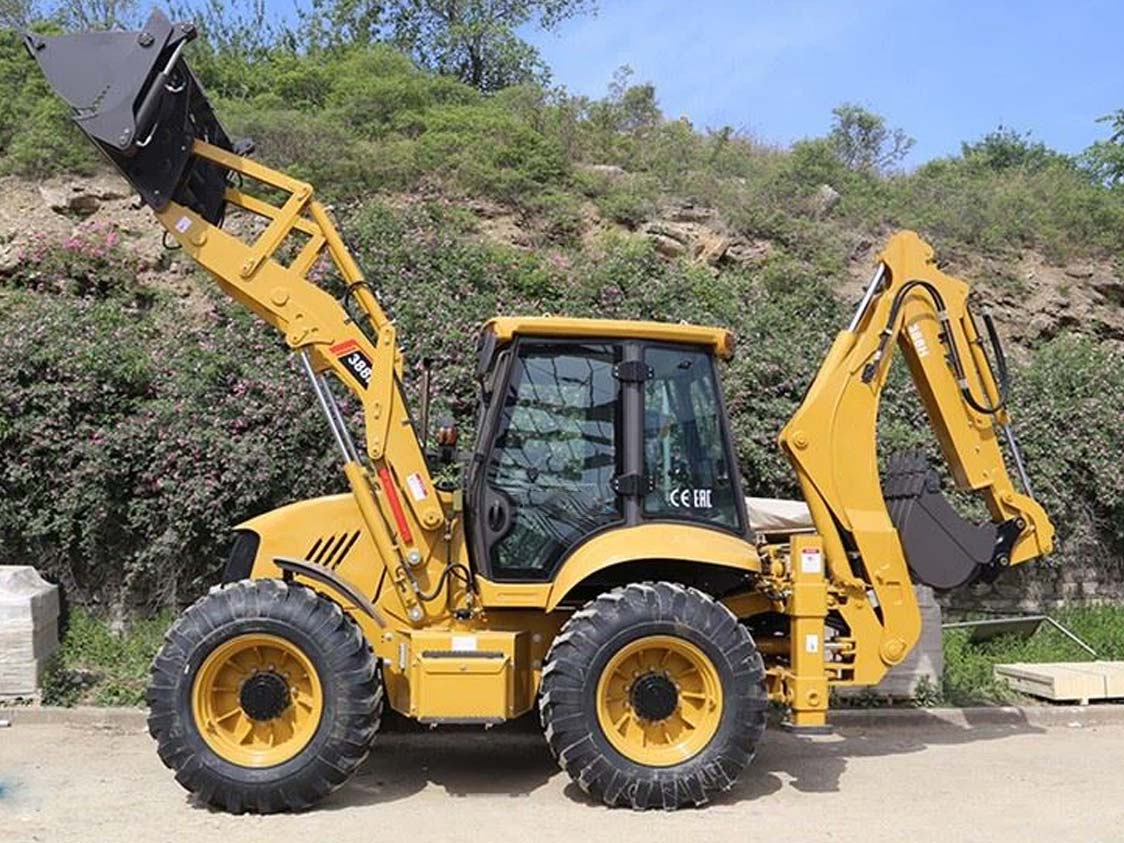

The 388H backhoe loader is the latest generation of backhoe loader, developed specifically for the Russian market and featuring a number of innovations. The reinforced overall frame and powerful Yuchai diesel engine increase digging force and lifting capacity, while the four-wheel steering mode is more solid and flexible. Developed with the needs of customers around the world in mind, the 388H delivers the reliability, power and top-notch operating environment to help you complete your toughest projects. Whether you're loading trucks, clearing blacktop, laying pipe, digging trenches or moving materials, the 388H backhoe loader is up to the task.

Here is the specification:

Overall dimensionOperating Weight10500KG
Overall dimension(L×W×H)6450×2530×3120mm
Wheel base2335mm
Wheel tread2050mm
Ground Clearance450mm

Performance

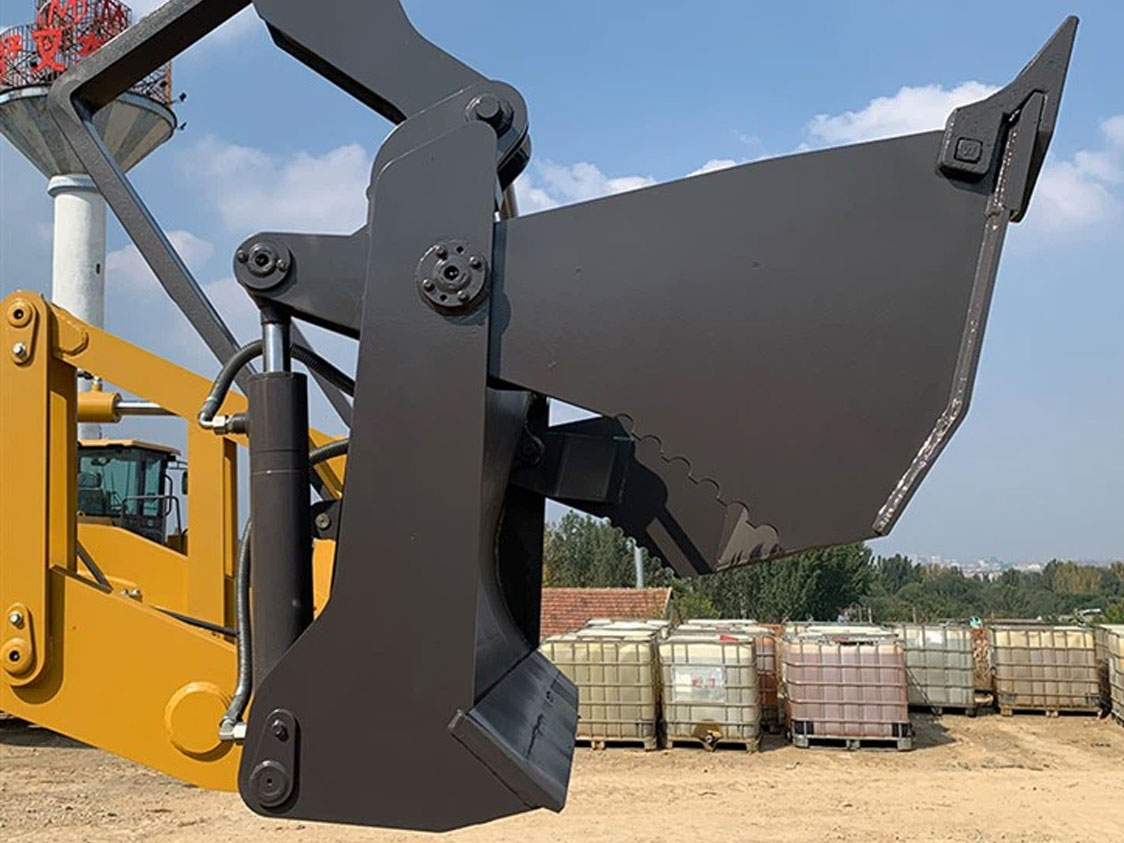

Loader bucket capacity

1.2m³

Loader breakout force

47KN

Loader lifting capacity

2500KG

Loader dumping height

3050mm

Loader dumping reach

870mm

Loader digging depth

52mm

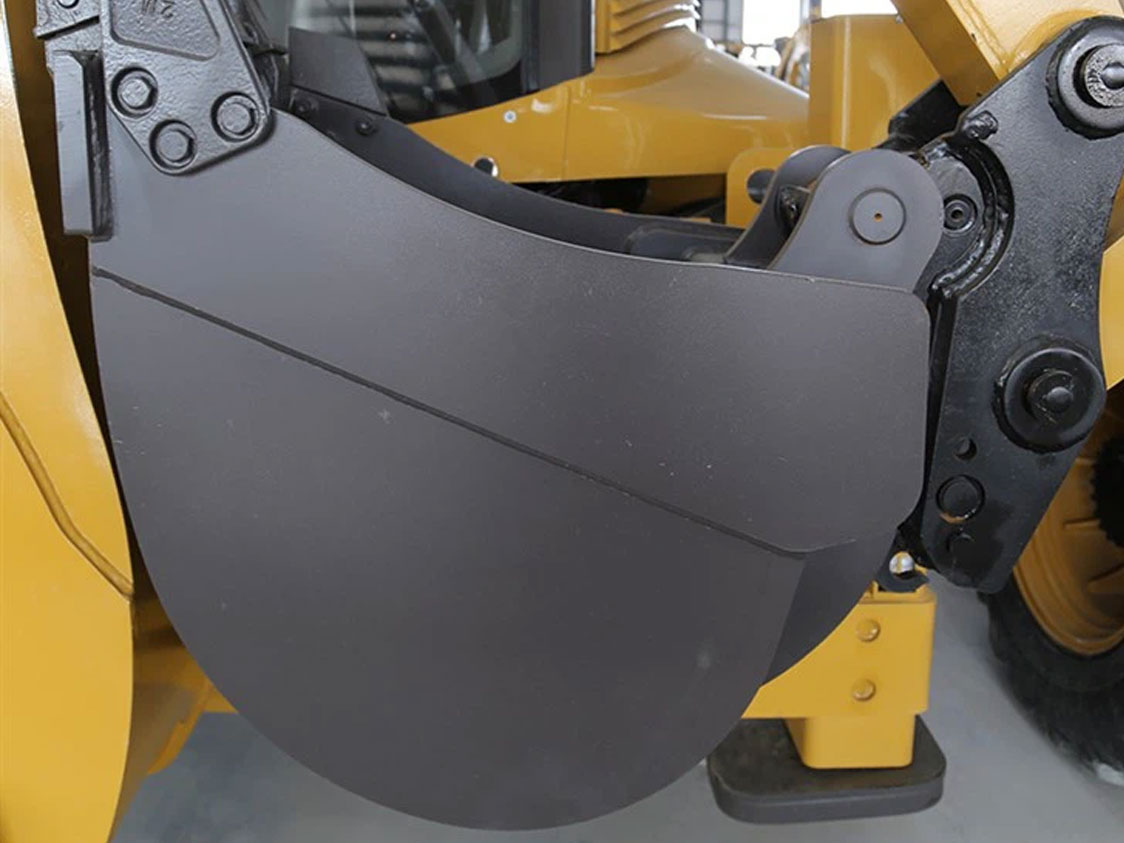

Backhoe bucket capacity

0.3m³

Backhoe bucket digging force

50KN

Backhoe swing angle

180°

Backhoe dumping height

4050mm

Backhoe max digging depth

3820mm

Max. traction force

86KN

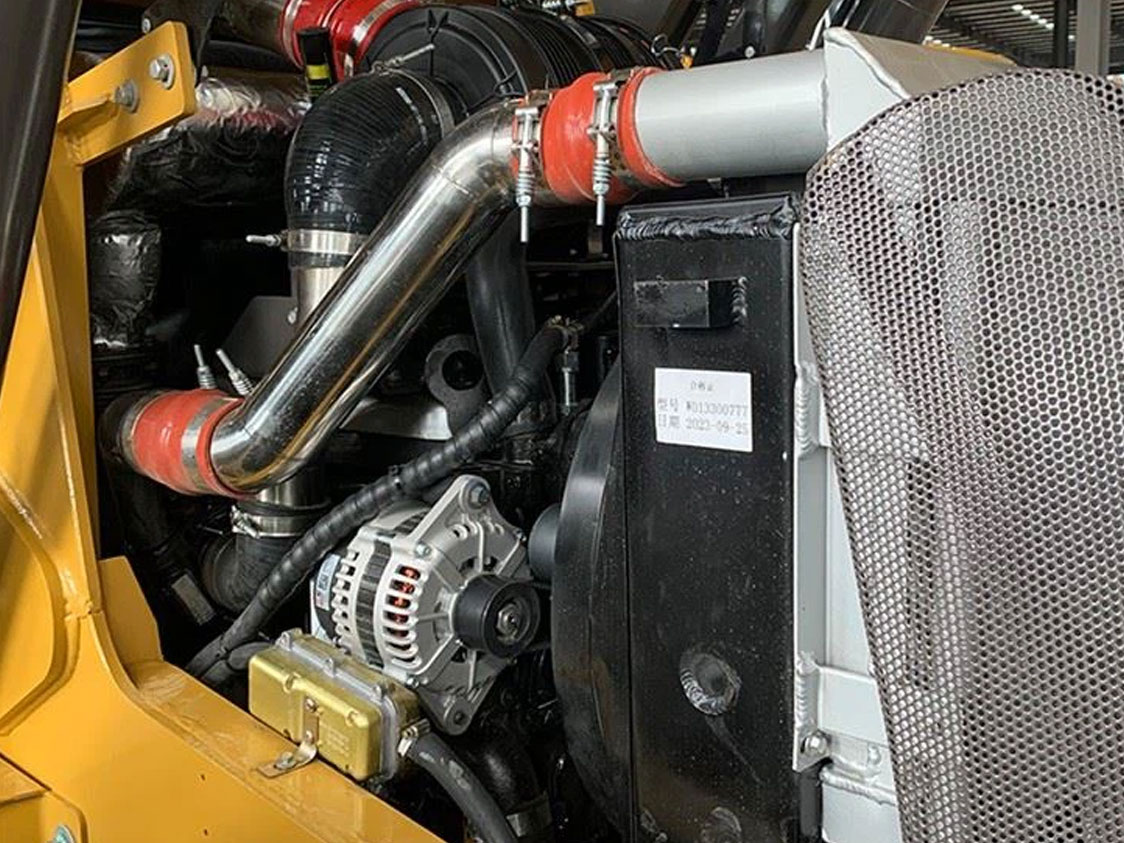

Engine

Model

Yuchai YC4A105Z-T20

Type

Turbocharging four-stroke

Cylinder-inner diameter*stroke

4-108×132

Rated power

75KW/100HP

Rated speed

2200r/min

Min. Fuel consumption

230g/kw.h

Max.torque

400N.m

Displacement

4.8L

Steering system
TypeHydraulic Steering
Diverter modelBZZ5-250
Pump delivery63ml/r
Steering angle±35°
Min. turning radius6950mm
Driving axle
Model
WZL100DF
ManufacturerChina axle
Max. load of front axle13 ton
Max. load of rear axle13 ton
Transmission
GearboxMechanically Operated Hydraulic Synchrinized Shift
ModelZL30
Gears4 forward and 4 reverse gears
Hydraulic torque converterYJ320
Inlet pressure0.4-0.65Mpa
Outlet pressure1.6-1.9Mpa
Cooling modeoil-cooling presssure circulation
Pump delivery40ml/r

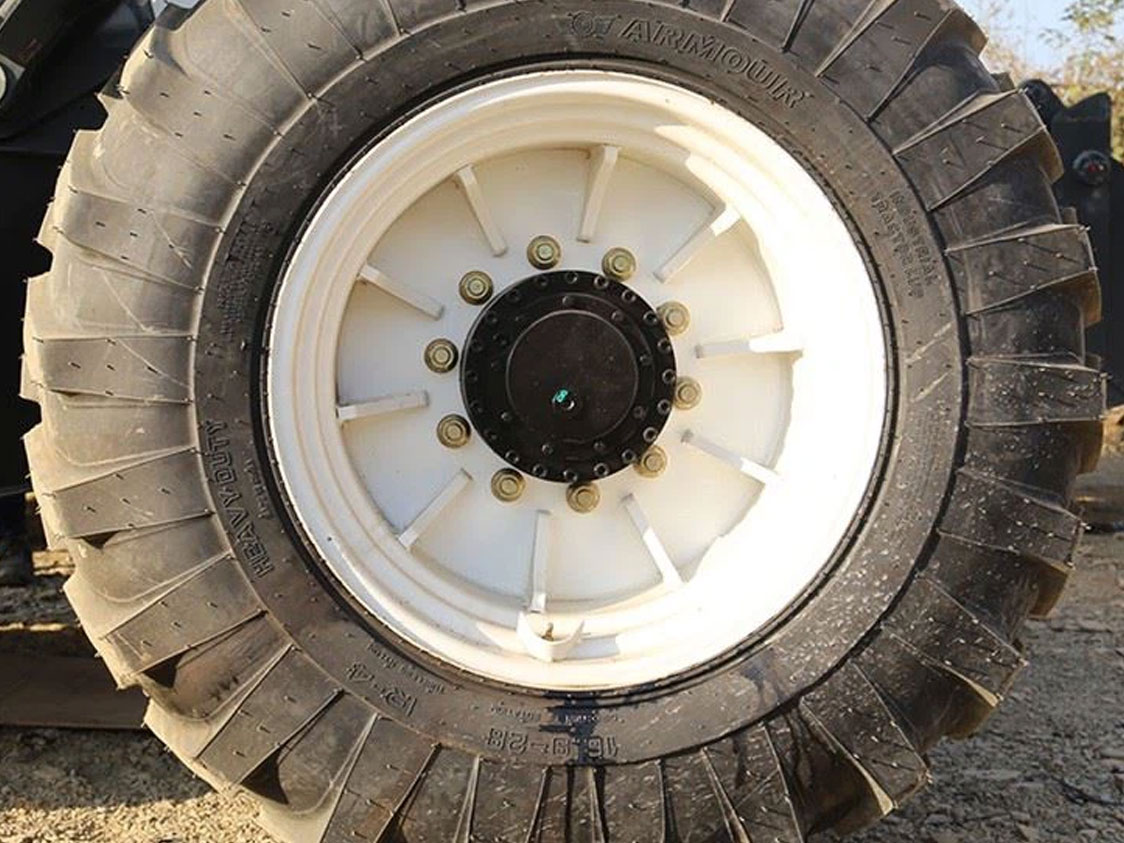

Wheel

Front wheel size

16.9-28

Rear wheel size

16.9-28

Front tire pressure

0.35Mpa

Rear tire pressure

0.35Mpa

Travel speed

38Km/h

Brake system
Service brakeGas pushed oil, built-in-selfregulation, self-balance
Parking brakeManual brake
System pressure
Loading hydraulic system20Mpa
Digging hydraulic system20Mpa

Steering hydraulic system

14Mpa
